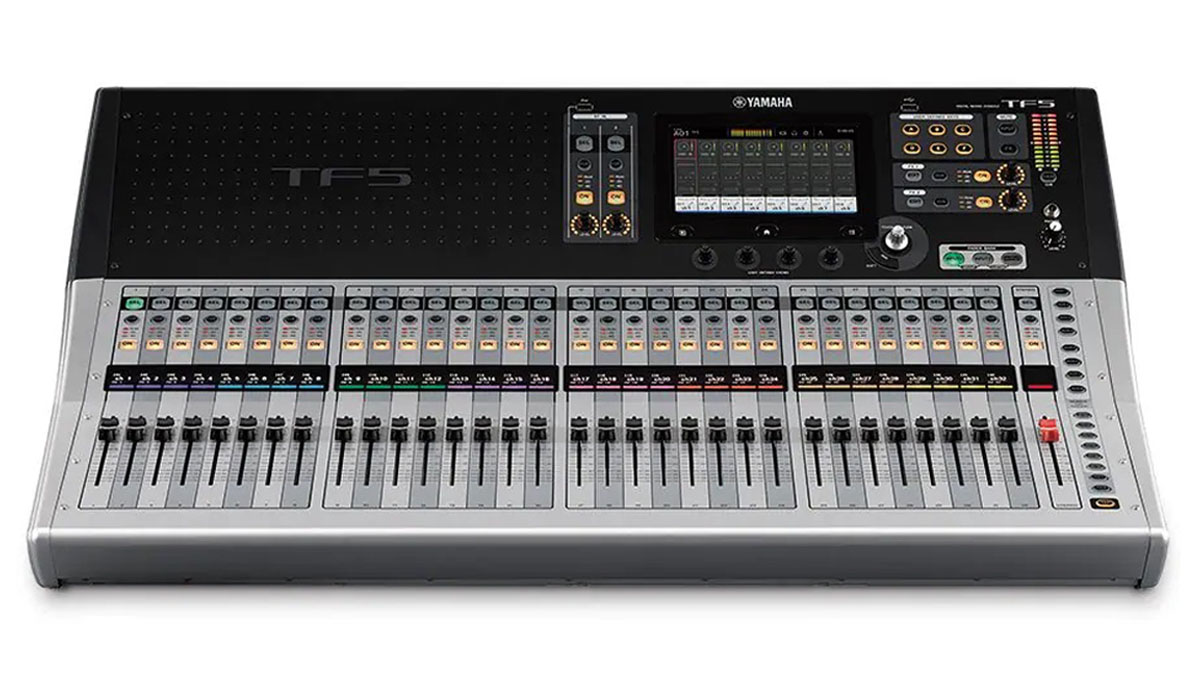

Yamaha TF5 Digital Mixing Console

Yamaha TF5 is a 32 channels Digital Mixing Console with high input capacity and fader count makes this powerful console ideal for larger applications.

Category: Tag:

TouchFlow Operation™ – Smooth, Natural Control Flow

Yamaha digital consoles have always been designed with input from leading engineers worldwide to ensure that the most efficient, intuitive operation is achieved. The highly regarded Selected Channel and Centralogic™ interfaces attest to the success of that approach. The TF series combines Yamaha know-how with new input from the field and the latest touch-screen technology to deliver an evolved experience in console operation. Smooth setup and operation, practical presets and scenes, refined design, and software applications that integrate seamlessly with the entire system: these elements comprise TouchFlow Operation, a new concept in console interfaces that offers unprecedented comfort and convenience in small consoles, for a wide range of users and applications.

1-knob compression and EQ let you dial in the ideal sound

Gain, compressor, and EQ setup is child’s play with the Yamaha TF5 32-input digital console.

An experienced engineer can do a lot with a compressor: bring a guitar to life, add punch to bass, tighten up a snare, and make vocals ride clearly on the mix. The 1-knob COMP can do all of this quickly and easily, without the need to juggle multiple parameters to achieve the desired effect. Originally introduced in Yamaha analog mixers, the 1-knob COMP quickly became a popular and valued feature. It has now been further refined in a digital version that adds new setup ease and efficiency to the TF consoles.

The same concept has been applied in a new 1-knob EQ feature that provides notably improved speed and smooth operation. 1-knob EQ has been painstakingly fine-tuned by Yamaha R&D staff in cooperation with distinguished sound engineers, to ensure that you can achieve outstanding results with minimum effort in the shortest possible time. A Vocal Mode makes it easier than ever to achieve a clear, well defined vocal sound, while an Intensity Mode offers 1-knob “intensity” control over EQ curves you either select from the presets or create from scratch.

But there’s more: the 1-knob COMP and 1-knob EQ are provided on the output channels too, so you can quickly achieve overall output compression or EQ that ideally matches the room and audience size. The output 1-knob EQ has a Loudness Mode in place of the Vocal Mode, effectively increasing the sound pressure level while maintaining optimum sound as you rotate the knob.

Both the 1-knob COMP and 1-knob EQ provide quick access to the full compressor and EQ displays, so you can fine tune settings as required.

Presets and scenes – shortcuts to great sound

The Yamaha TF5 is probably one of the least intimidating 32-input digital consoles in existence, thanks to its incredibly practical presets and scenes. The familiar Yamaha scene memory that stores mix settings for instant recall when needed is included as always. There’s also a range of channel presets that have been created in cooperation with leading microphone manufacturers and eminent sound engineers, providing starting points that take you a long way towards achieving great sound. The channel presets cover parameters such as HA gain, EQ, dynamics, and much more, right down to details like channel name and color. Less time needs to be spent on basic setup so that more time is available for refining the mix and communicating with the performers.

Main Features :

  • TouchFlow Operation maximizes workflow efficiency
  • 1-knob compression and EQ let you dial in the ideal sound
  • GainFinder supports precision gain setup
  • Dan Dugan automatic mixing system easily optimizes microphone gain and fights feedback
  • QuickPro presets provide instant access to pro-sound setups
  • 2 scene memory banks let you set up and instantly recall your settings
  • 32 D-Pre mic preamps deliver phenomenal sound
  • Onboard effects based on SPX processor
  • TF StageMix iPad application provides wireless control
  • TF MonitorMix iOS application allows for wireless personal monitoring
  • 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
  • 1 expansion slot for NY64-D audio interface card
  • Expandable to 48 mixing channels
Brand

Yamaha

Model

TF5
