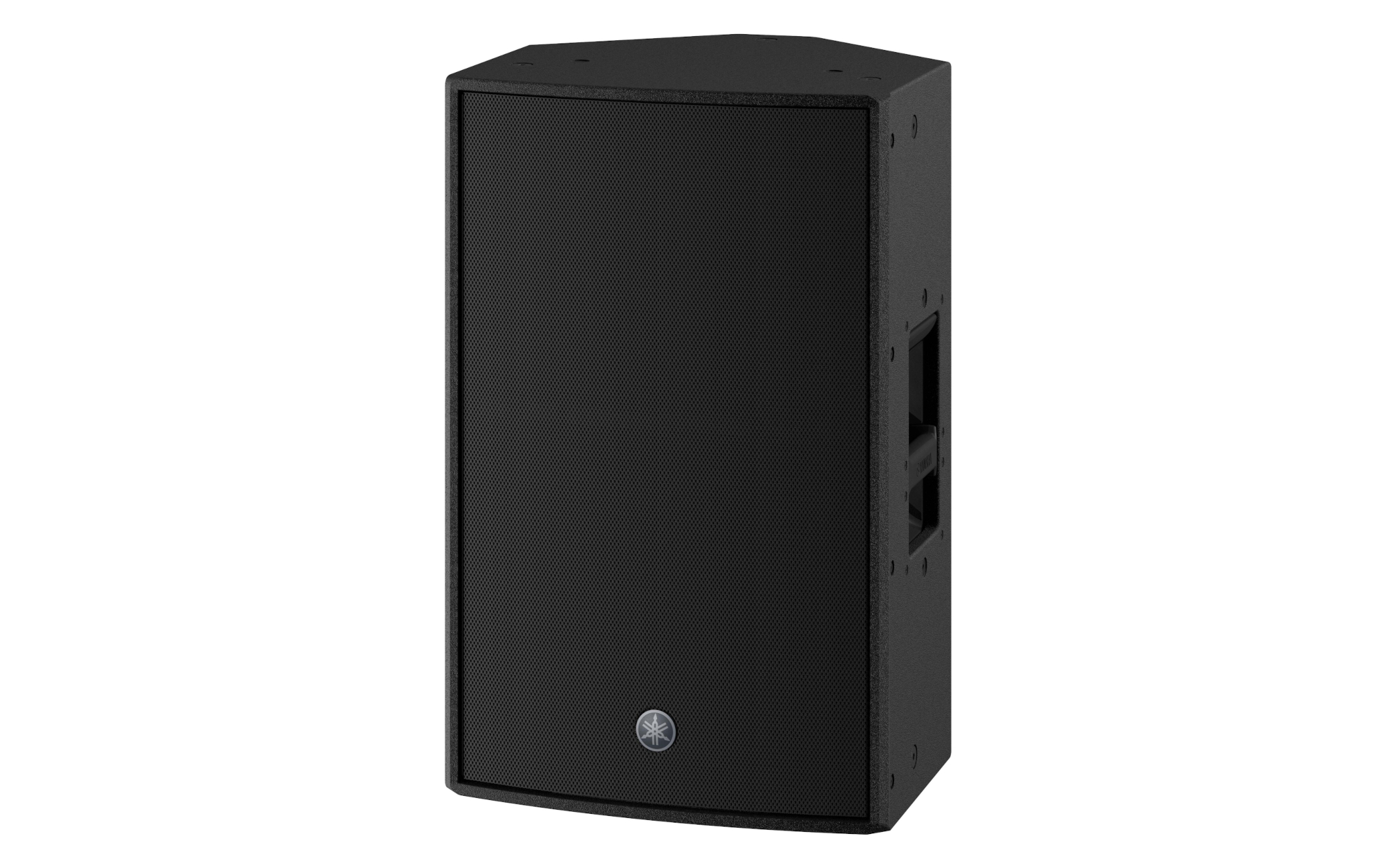

Yamaha DZR12 12″ Powered Speaker 950W, 138dB SPL

The Yamaha DZR12 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 139dB SPL.

Category: Tag:

The Yamaha DZR12 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 139dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

MAIN FEATURES

  • 2-way powered loudspeaker with a 2” HF and a 12″ LF
  • Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today’s sound engineering demands
  • High Power Output Dynamic 2000W
  • Continuous 950W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits

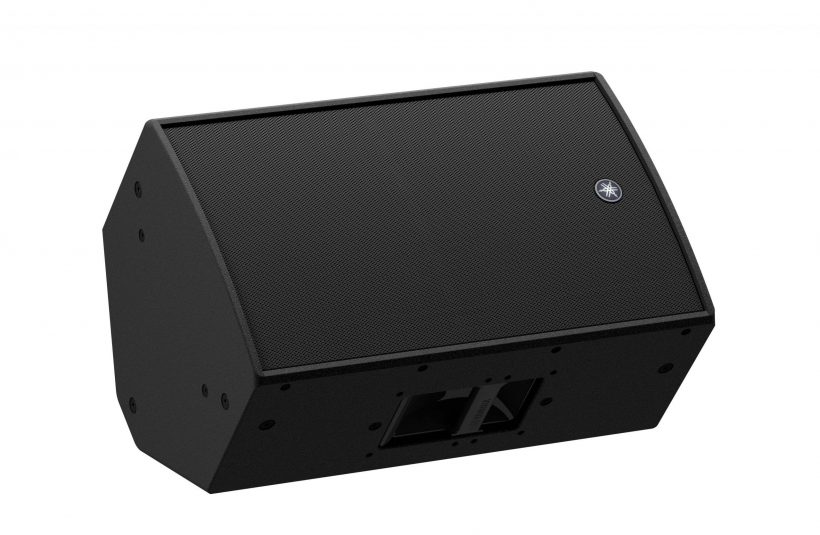

  • Floor monitoring setting enables mirroring configuration
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating

Perfectly suited for :

  • Club & bar installations
  • Sound reinforcement
  • Theatres
  • Houses of worship
  • Multi media spaces
  • Public address
Brand

Yamaha

Model

DZR-12

Speaker type

2-way, Bi-amped Powered Speaker, Bass-reflex

Components

LF: 12" Cone, 3" Voice Coil, Neodymium magnet

HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet

Frequency Range

39Hz – 20kHz (-10dB)

Crossover

1.8kHz (FIR-X)

Max SPL

139 dB

Coverage Area

90º x 60º rotatable

Power Rating

Dynamic: 2000W (LF: 1000W, HF: 1000W) – See Note 1

Note 1 : Total peak power of individual outputs (AC 120V, 25℃). This value was measured at minimum load impedance, with protection released.

Continuous: 950W (LF: 850W, HF: 100W)

I/O Connectors

Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ,
Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT

USB2.0 Host 5V 500mA for USB memory DATA storage/load

AC: IEC AC inlet x1 (V-Lock)

Amplifier Class

Class-D

Handle

Aluminium die-cast, Side x2

Rigging

M10 x12

Finish

Durable Polyurea Painting

Material

Plywood

Dimensions

646 x 410 x 394 mm (H x W x D)

Weight

21.4kg (47.2lbs)

Floor Monitor Angle

50° Symmetrical

Pole socket

Φ35 mm x2 (0° or -7°)
