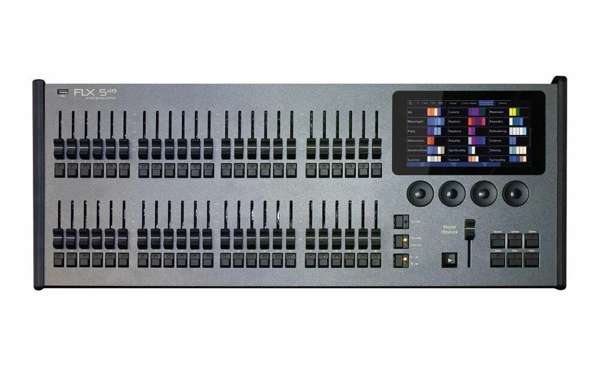

Zero88 FLX S48

Vari-Lite FLX S48 Lighting Control Desk

The FLX S48 Console is a 48 fader lighting control desk for 1024 channels over two universes DMX for playback and programming for 192 fixtures.

Key Features
  • 1024 channels
  • 48 faders
  • 192 Fixtures
View & Download PDF Version

Description

The FLX S48 Console is a 48 fader lighting control surface that brings the legacy and power of our consoles in an easy-to-use package at an affordable price.

Built on the award-winning ZerOS software, the FLX S48 includes an intuitive, user-friendly interface. The onboard 7” multitouch screen, four physical encoders and seven dedicated physical buttons simplify operation, while support for an external touchscreen monitor offers additional control capabilities. The ZerOS software makes it easy to design the perfect look, with multiple color selection options and intuitive moving head fixture control. To ensure users can get the job done without getting lost, ZerOS includes an on-board Guidance tool and quick select Z button.

The FLX S48 Console supports 192 fixtures and offers 1024 channels of DMX control connected via the two 5-pin DMX ports or Ethernet based DMX.

Features
  • Award-winning ZerOS software
  • Simple “three-step programming”
  • 7” Multitouch screen
  • External monitor support
  • 4 physical encoders and 7 dedicated buttons for go, record, delete, etc.
  • Image picker for control selection upload a photo and select different colors in the image to add color variation and depth
  • Multicell fixture support control all pixels in a multiple pixel fixture as easily as single-cell fixtures without intensity conflicts.
  • Mood Boards by LEE Filters
  • Onscreen guidance tool for tips and advice in English, Spanish, French, and German
  • Exclusive Z button for quick access to important tools
  • Support for Ethernet protocols such as sACN, Art-Net, CITP, OSC, Vision.Net
Specification

Brand: Varilite
Model: FLX S48
Included License: 4x Universes (2048 channels)
Fixtures 192 fixtures
DMX Output 2x Neutrik 5-pin female XLR
Display Outputs 1x HDMI
Ethernet 1x RJ45
Dimensions (W x H x D): 669 x 68 x 284 mm
Weight: 5.5 kg
