G Acoustic K12

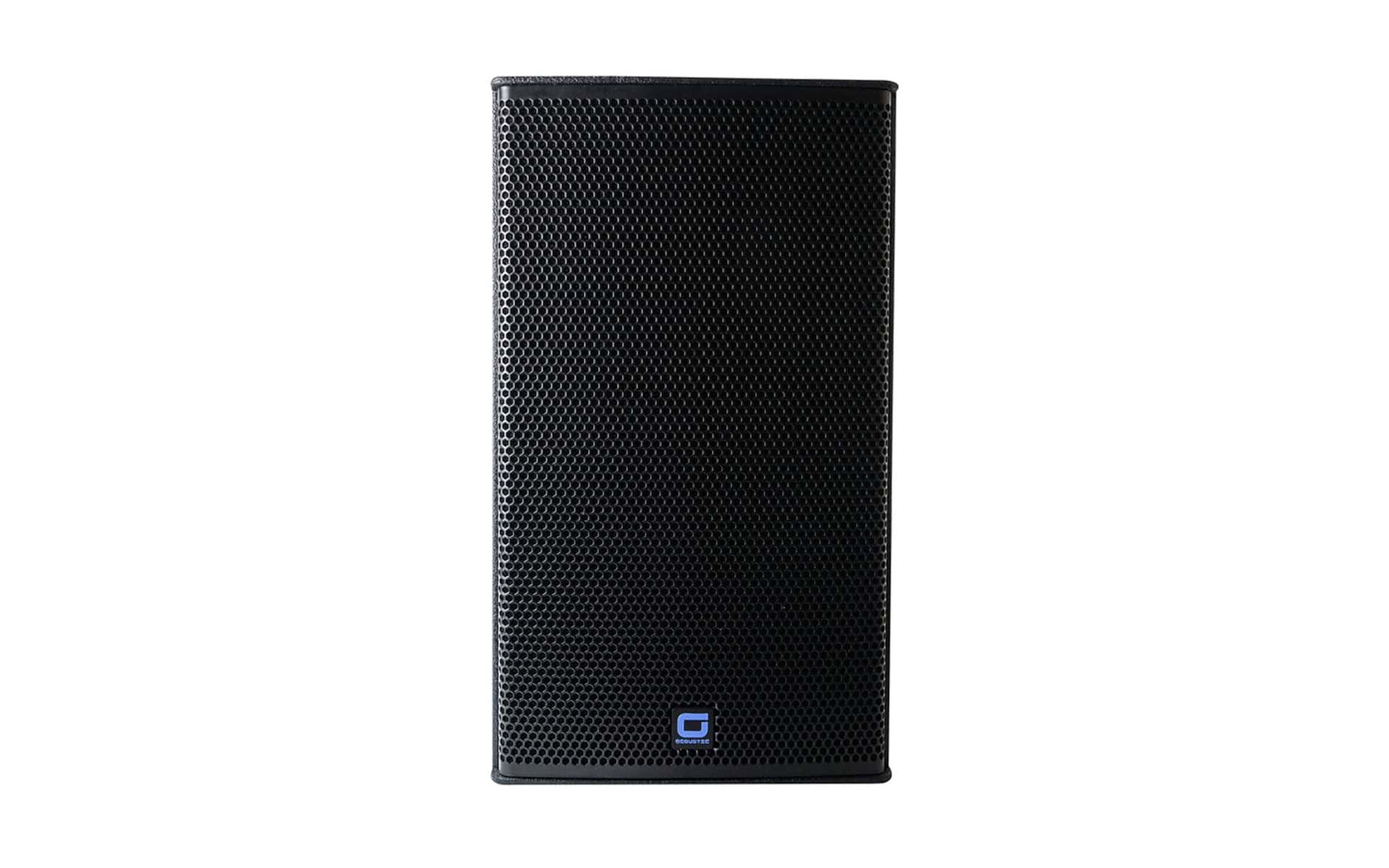

G-Acoustic K12 Loudspeaker 500W

The K12 is a professional passive 12” loudspeaker with 500W RMS Power designed for Multifunctional Applications.

Key Features
  • 2 way passive 12" loudspeaker
  • 500w rms power
  • Sensitivity 97dB
View & Download PDF Version

Description

The K12 is 2-way configuration with bass reflex loading 12” driver with 76mm (3”) voicecoil and high frequency compression driver.

The cabinet consists of a 12” driver with 76mm (3”) voicecoil and ferrite magnet as low frequency transducer together with a 46mm (1.75”) high frequency compression driver with 1.0“ exit mounted on a 60° x 40° constant directivity horn.

For rigging and mounting are various M8 points available in 100mm distance to use standard mounting accessories for ceiling, wall and standing application.

Features
  • 2-way configuration with bass reflex
  • Maximum 97dB SPL and 49Hz-19kHz frequency range
  • 12” driver with 76mm (3”) voicecoil
  • 60° x 40° constant directivity horn
Specification

Brand: G Acoustic
Model: K12
Power RMS 500W
Frequency Response (4db) 49Hz - 19kHz
Sensitivity (1W/1m) 97dB
Impedance 8 ohm
Dispersion (HxV) 60 deg x 40 dwg
Input Mode 2 x Speakon NL-4
Rigging and Hanging M8 rigging points
Dimensions (DxWxH) 380mm x 350mm x 605mm
Weight 21kg
