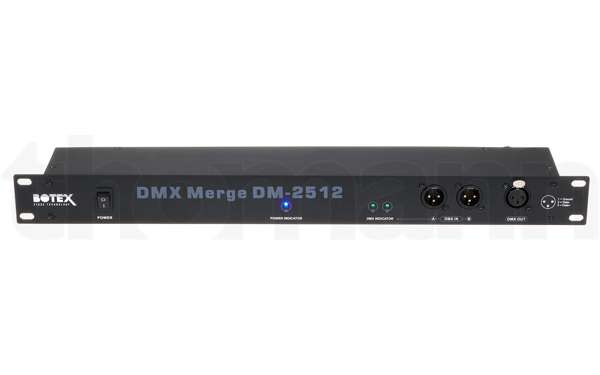

Botex DMX Merge DM-2512 DMX Merger

The Botex DMX Merge DM-2512 merges two DMX input into one DMX output according to different rules :  Interconnected signals filter out and transmit the highest signal, implementing the addresses, etc.

The Botex DMX Merge DM-2512 merges two DMX input into one DMX output. DMX signals are digital data streams which can not be simply added by a stacking switch. For this purpose, a converter is required which is equipped with two receivers and a transmitter. All received data is properly reassembled and emitted again.

The merging can take place according to different rules: Interconnected signals filter out and transmit the highest signal, implementing the addresses, etc

Features:

  • 2x DMX512 inputs XLR 3-pin
  • 1x DMX512 output
  • XLR 3-pin output
  • HTP
  • Functions: Merge/Add/Sub
Brand

Botex

Model

DMX Merge DM-2512

Type

DMX Merger

Inputs

2x DMX512 XLR 3-pin

Outputs

1x DMX512 XLR 3-pin

Power

230VAC, 50/60Hz

Dimensions

482 x 162 x 44 mm (L x W x L)

Weight

2 kg
