Amperes MX2222

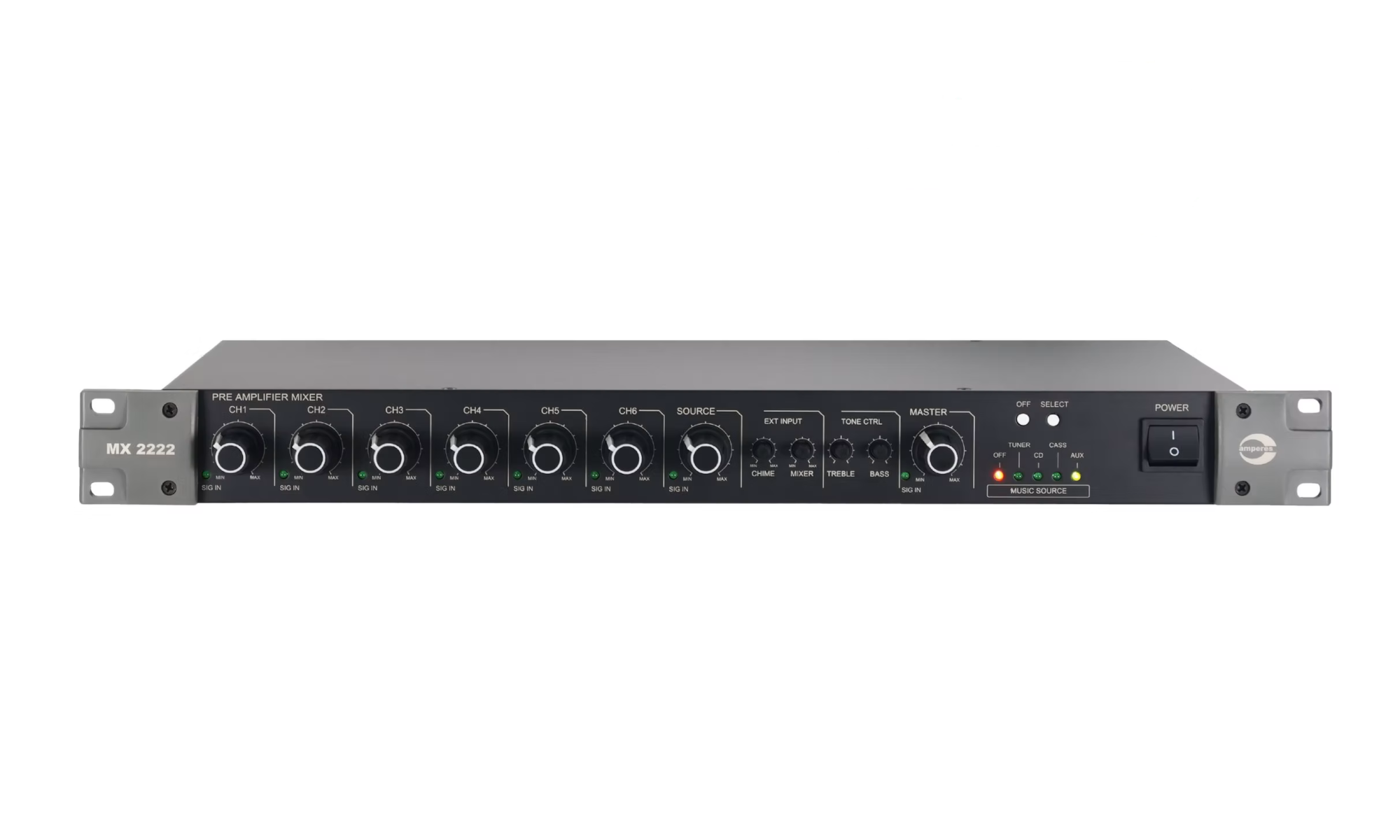

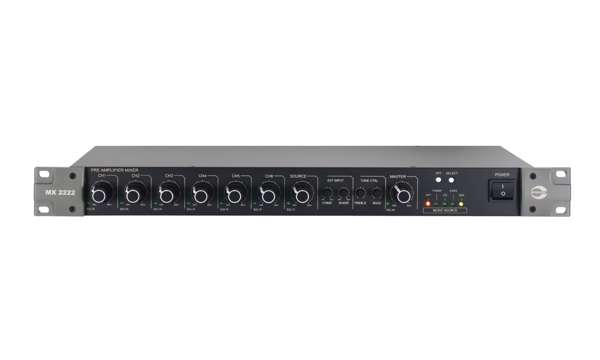

Amperes MX2222 Preamplifier Mixer

MX2222 is a compact 12-input PA preamplifier with priority channels, dual outputs for paging and BGM, and adjustable muting. Ideal for commercial and small-scale audio setups.

Key Features
  • 6 mic/line inputs, 4 RCA and 2 external lines
  • AC & DC power backup for uninterrupted operation
  • Built-in daisy chain source selector with memory for last selection
View & Download PDF Version

Description

The Amperes MX2222 Preamplifier feature a dual output for uninterrupted paging setup, like BGM and paging announcement. Adjustable priority muting level is available for paging announcement to override BGM and other lower priority sources. The PA Mixer also comes with 12V phantom power supply for microphone input.

Features
  • 12 inputs of mic, BGM sources, ext, chime and mixer link
  • Expandable to form more channels for larger setup
  • Auto mic muting with adjustable mixing level for mic Ch. 1, 2, ext. chime and mixer link
  • Priority muting with disable option for normal mixing mode
  • Switchable phantom power for mic channel 1 to 4
  • Dual output ; mixed line and BGM output for uninterrupted paging setup
  • Independently adjustable BGM output level with balanced line
  • Built in daisy chain source selector with last selection memory
  • Bass and treble tone control
  • AC and DC operation for uninterrupted operation during power failure
Specification

Brand: Amperes
Model: MX2222
Voltage: 230/ 240 AV or 24V DC
Inputs Channels : 6 x mic; 4 x BGM; ext chime in; mixer link
Phantom Power : 12V DC switchable at mic 1 to 4
Frequency Response : 175 Hz – 15 kHz (+/- 3 dB at 1 kHz) with low cut
Dimensions (WxHxD) : 482 x 44 x 180 mm
Weight (kg) : 2.5 kg
