Wisma BSN Auditorium Audio Visual Upgrading

Audio Visual, Sound System, Stage Lighting and LED Screen

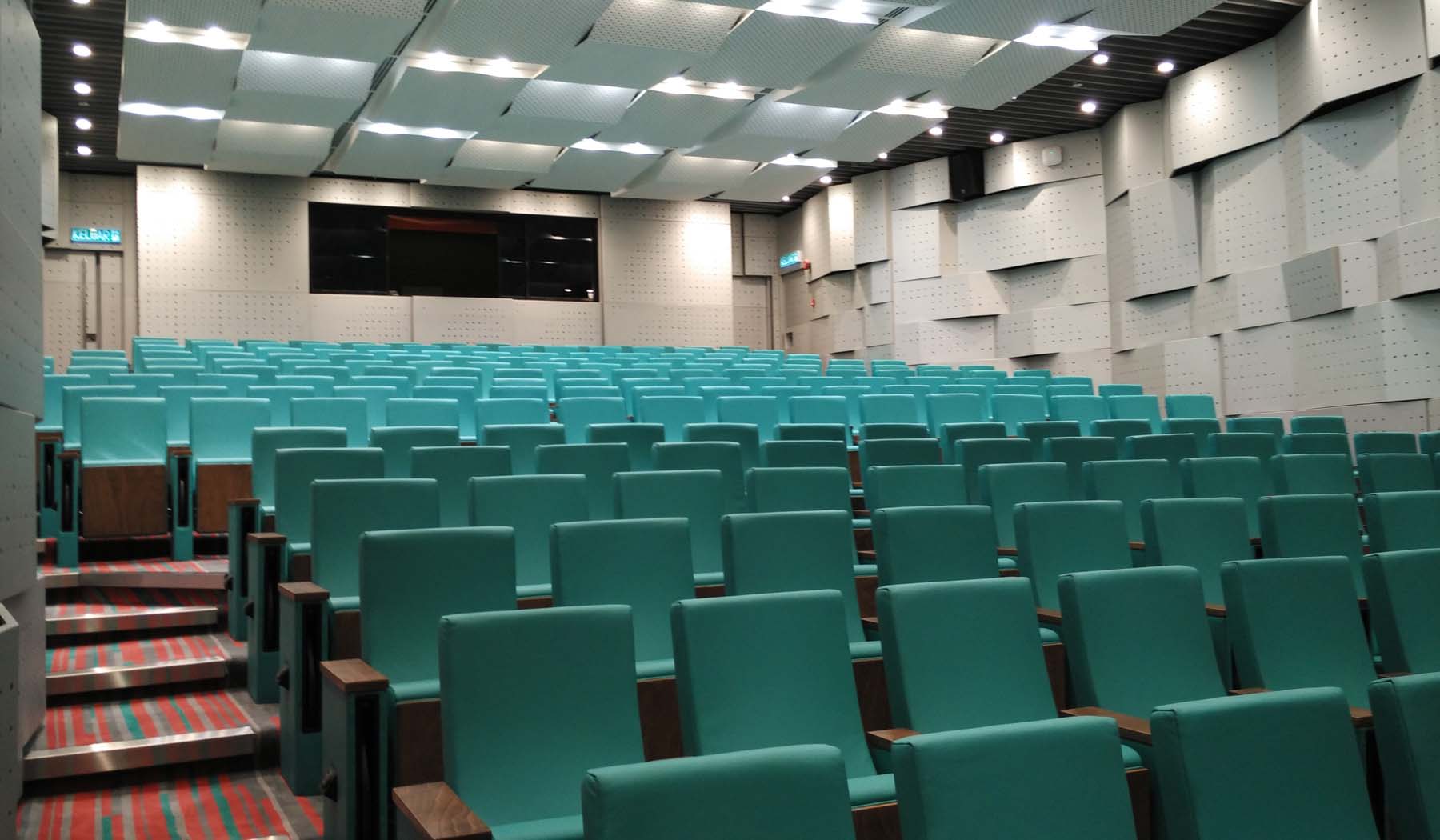

Wisma BSN Headquarters Kuala Lumpur upgraded their auditorium with a new look in term of Interior Design, seating, acoustic work and Audio Visual System.

Artistic Controls working with Acoustic Concept to supply and design sound reinforcement system, stage lighting, LED Screen, stage curtain and Audio conference system for the auditorium seats.

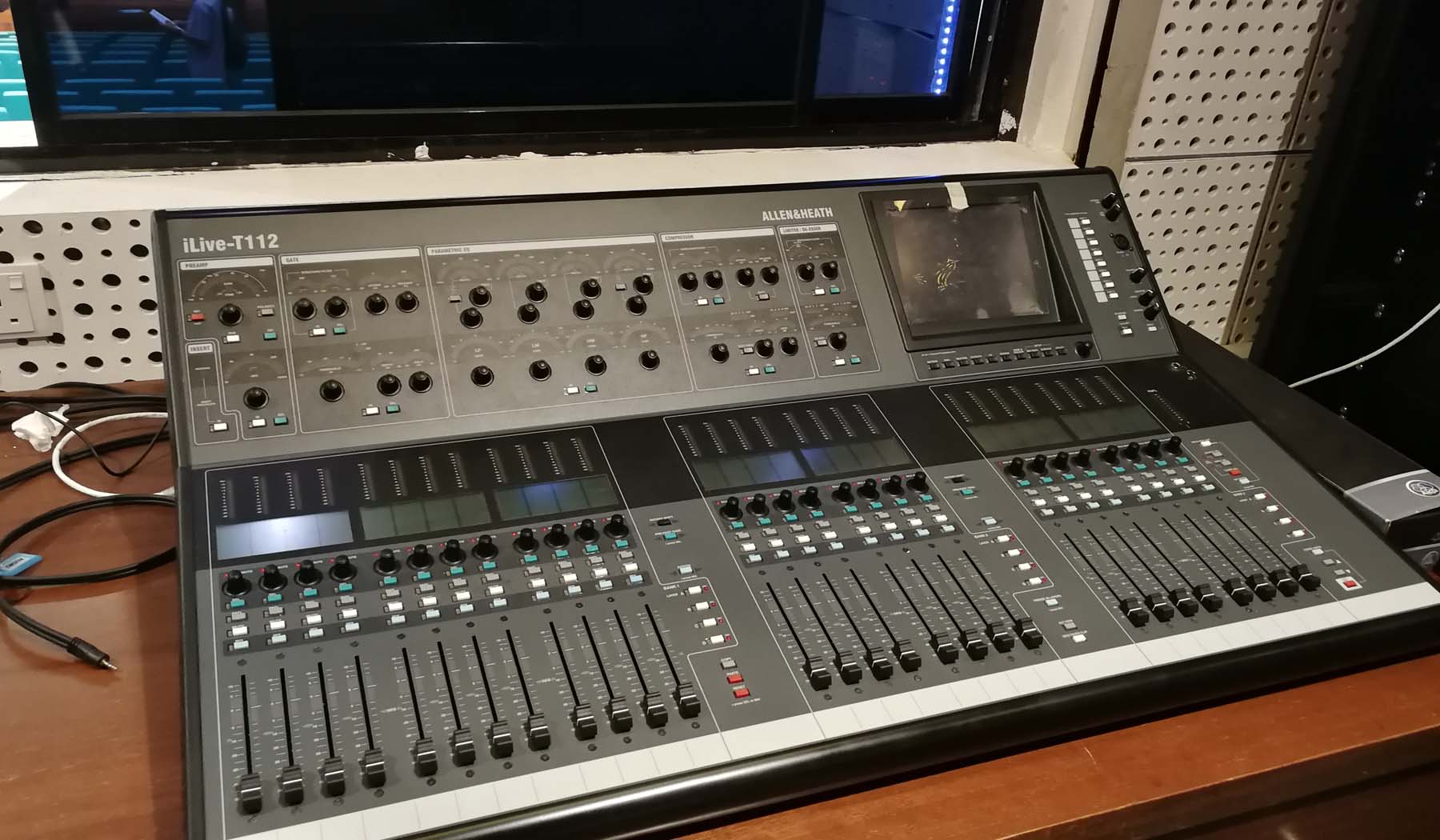

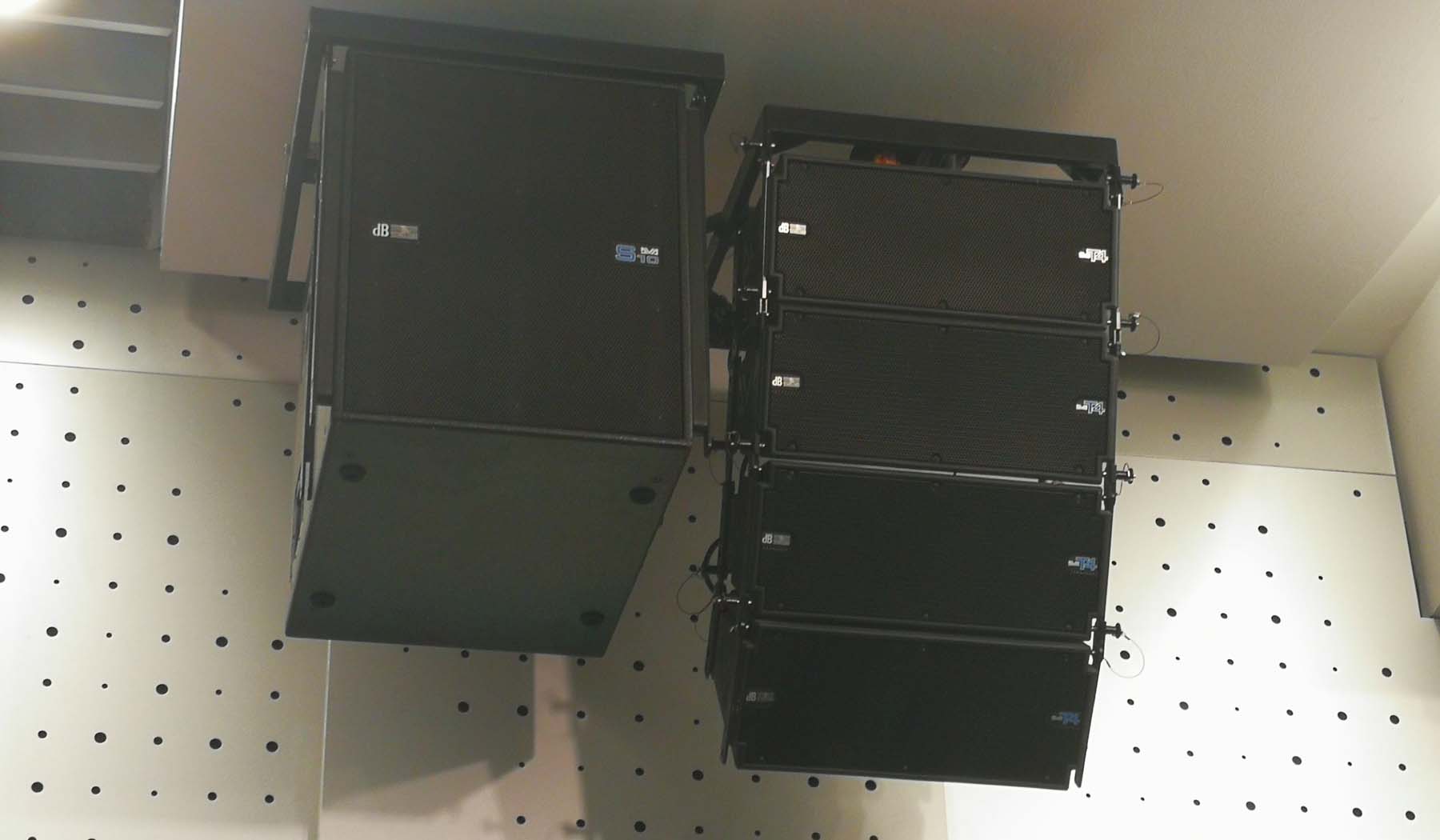

For the sound system we work closely with the AV Consultant to deliver DB Tech line array active speakers with surround sound speaker at the rear for the sound effects. A Premare 5.1 Channel Cinema Sound Processor. A digital mixer Allen & Heath was supply with a stage box to accommodate the need for stage miking system.

The stage lighting consists of fully LED spotlights and LED moving heads controlling by Zero 88 FLX Lighting Control Desk. The LED Spotlight consist of 10 nos of LED Profile, 10 nos of LED Fresnel and 20 nos of LED Par. The moving head is by Weinas 140W LED Beam Moving Heads.

For the projection display Artistic Controls install a 16 ft by 10 ft LED Screen at the stage. All input and output via HDMI Extron Matrix switcher and extender.

Taiden digital conference system was used to installed at the auditorium Ferco seatings. It come with voting and audio conference recorder. There are about 232 nos of seats that fitting with this digital conference microphone.

Not forgetting that the Integrated AV Control system is by Crestron CP3 and powered by ipad touch panel.

Overall the installation was successful and handover to the BSN client on time. For more of the BSN Bank please go to the website.
