Taylor’s International School Puchong Auditorium Sound And Light System

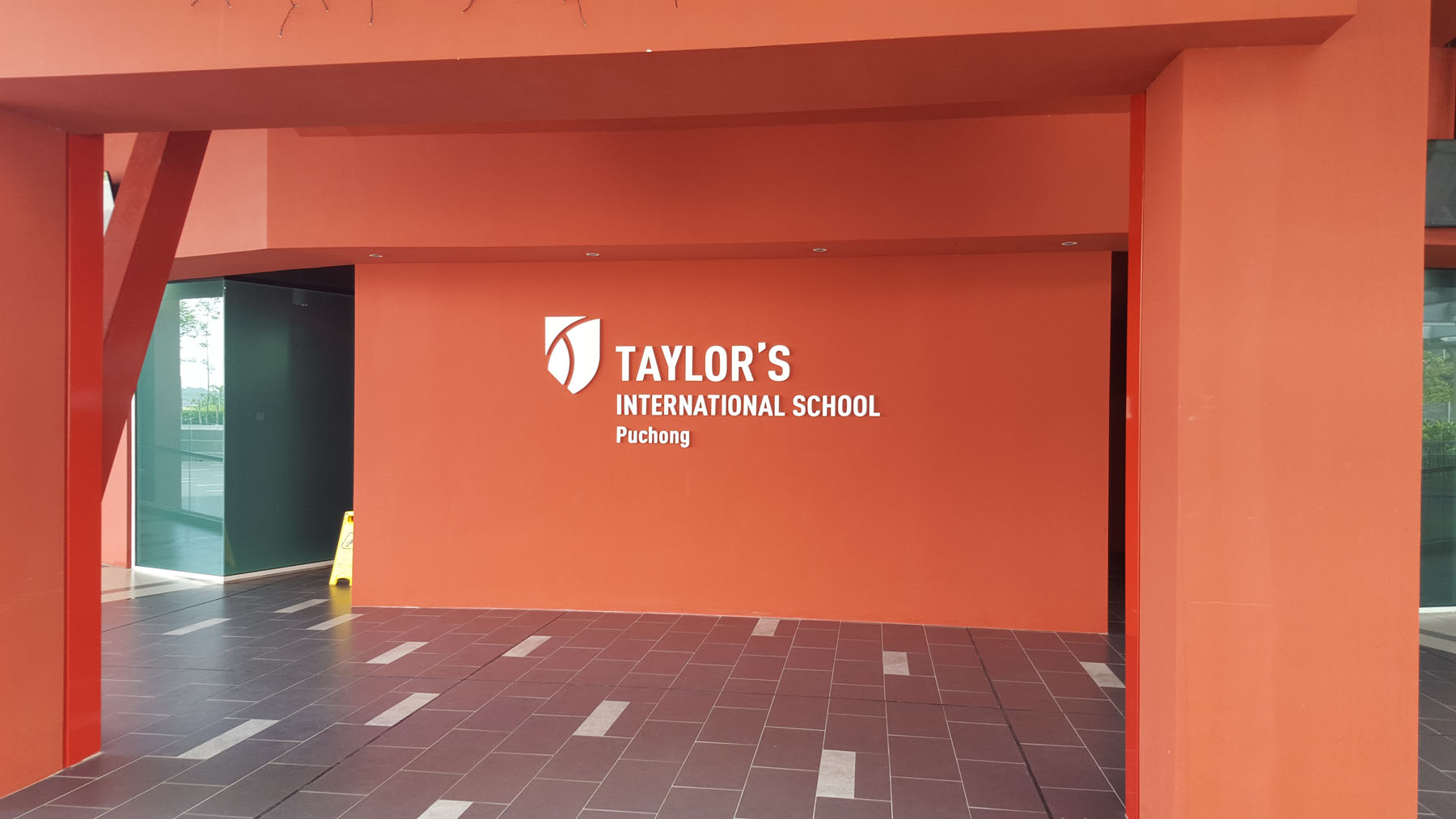

Taylors International School or TIS Puchong is the second campus of Taylor’s International School in Malaysia. Located at Bandar Bukit Puchong 2, the school has direct access to the Lebuhraya Damansara- Puchong (LDP) and is within easy reach of Subang Jaya, Cyberjaya and Putrajaya.

The campus can accommodate 1,500 students on a triangulated 6.8-acre site. The school was designed to cater to local students in Puchong, but the education program is based on an international standard curriculum.

Artistic Controls was awarded to supply and install LED Stage Lighting System, Line Array Speaker, Audio Visual System, Projection System, Stage Curtain and Integrated Control System.

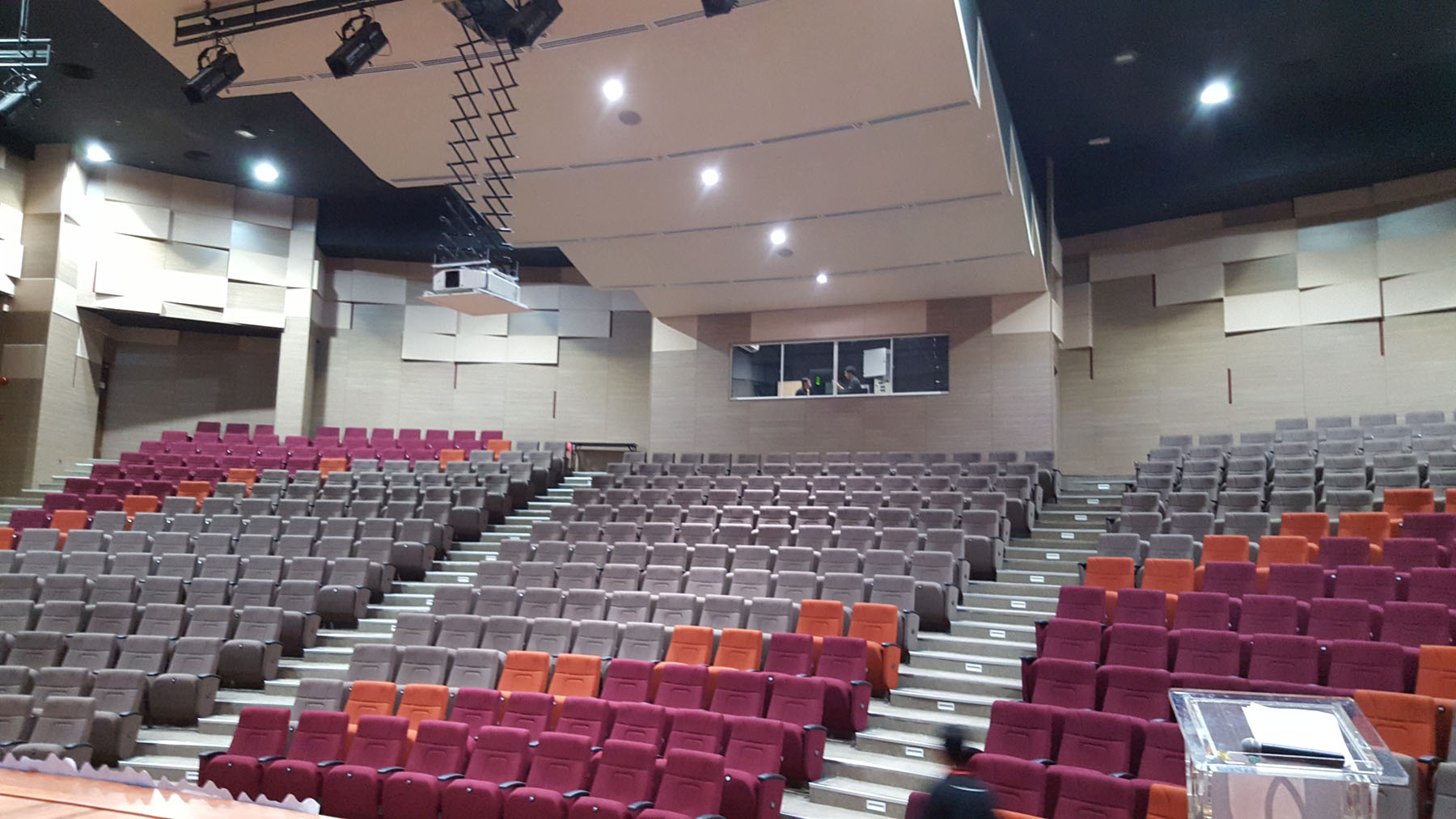

The Auditorium with 457 seating capacity was built to accommodate various school program and is a perfect venue for large lectures, conferences, film screenings, dance and musical performance.

Installed Sound System

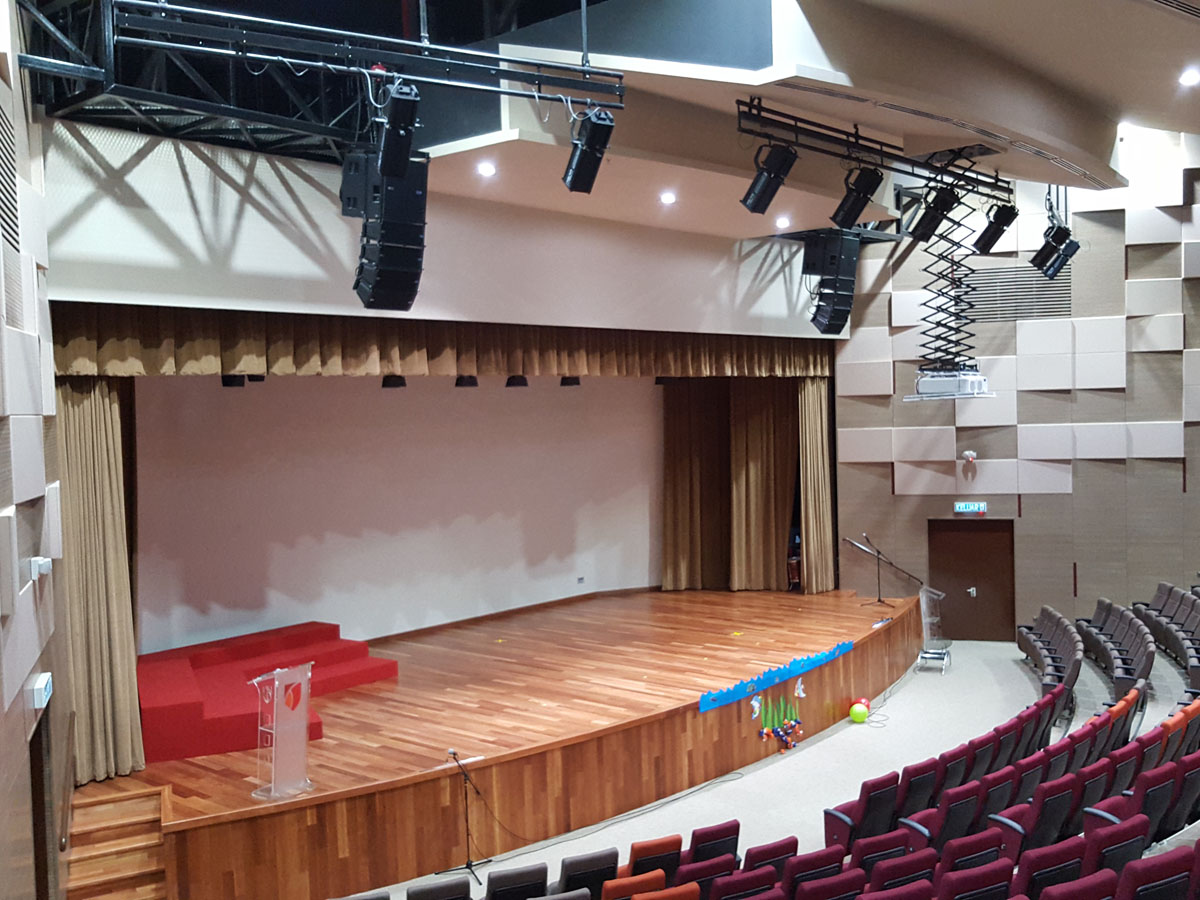

The Main FOH speaker system is an Active Line Array loudspeaker by DB Tech consist of 2 nos 18″ Active subwoofer and 8 nos 8″ Active Fullrange speaker. The Motorized Hoist and rigging kit will allow the loudspeaker to hoist down for servicing if needed.

The sound console is Yamaha TF-5 32 channel Digital Sound Mixer. To ensure coverage to the Auditorium we install high performance Coaxial Ceiling speaker within the Auditorium itself.

Miking and wireless microphone system is using fully Shure microphone.

Stage Lighting

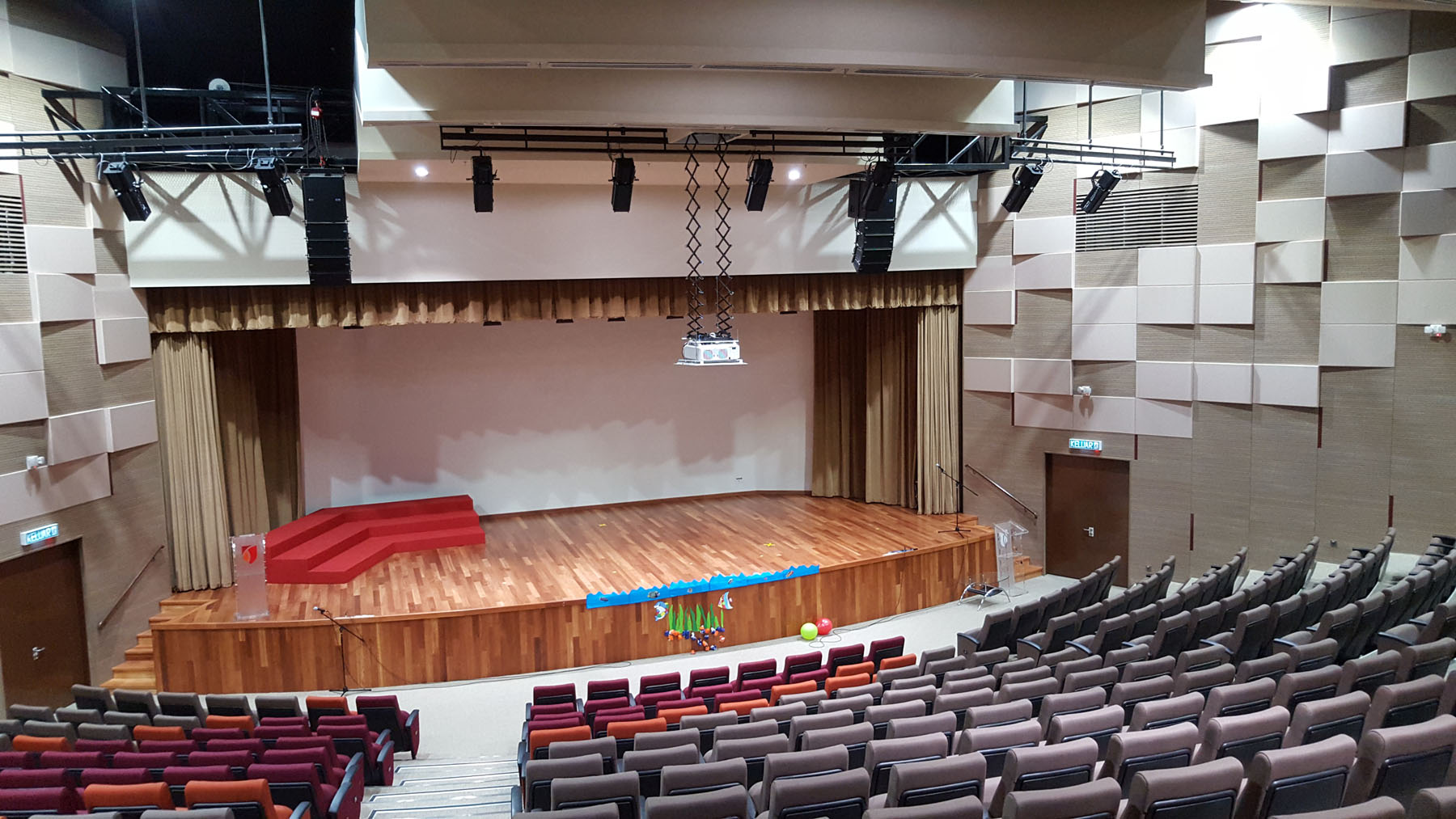

A mixture of LED Spotlight was installed on the stage with LED Fresnel spotlight, LED Par, Cyclorama Lights and LED Moving Head. For the Profile spotlight we installed a long throw 1200W Zoom Profile to cover the front stage.

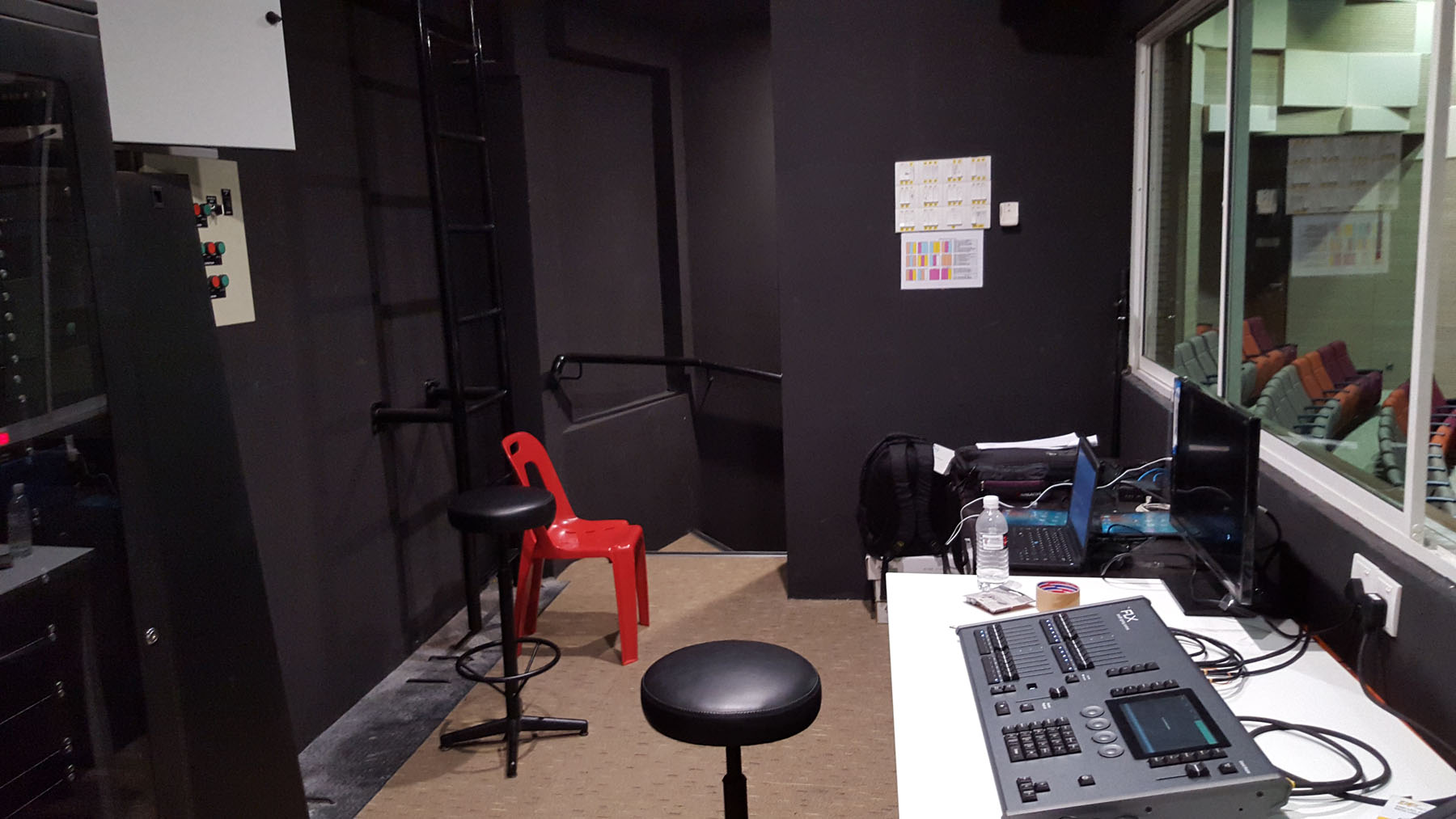

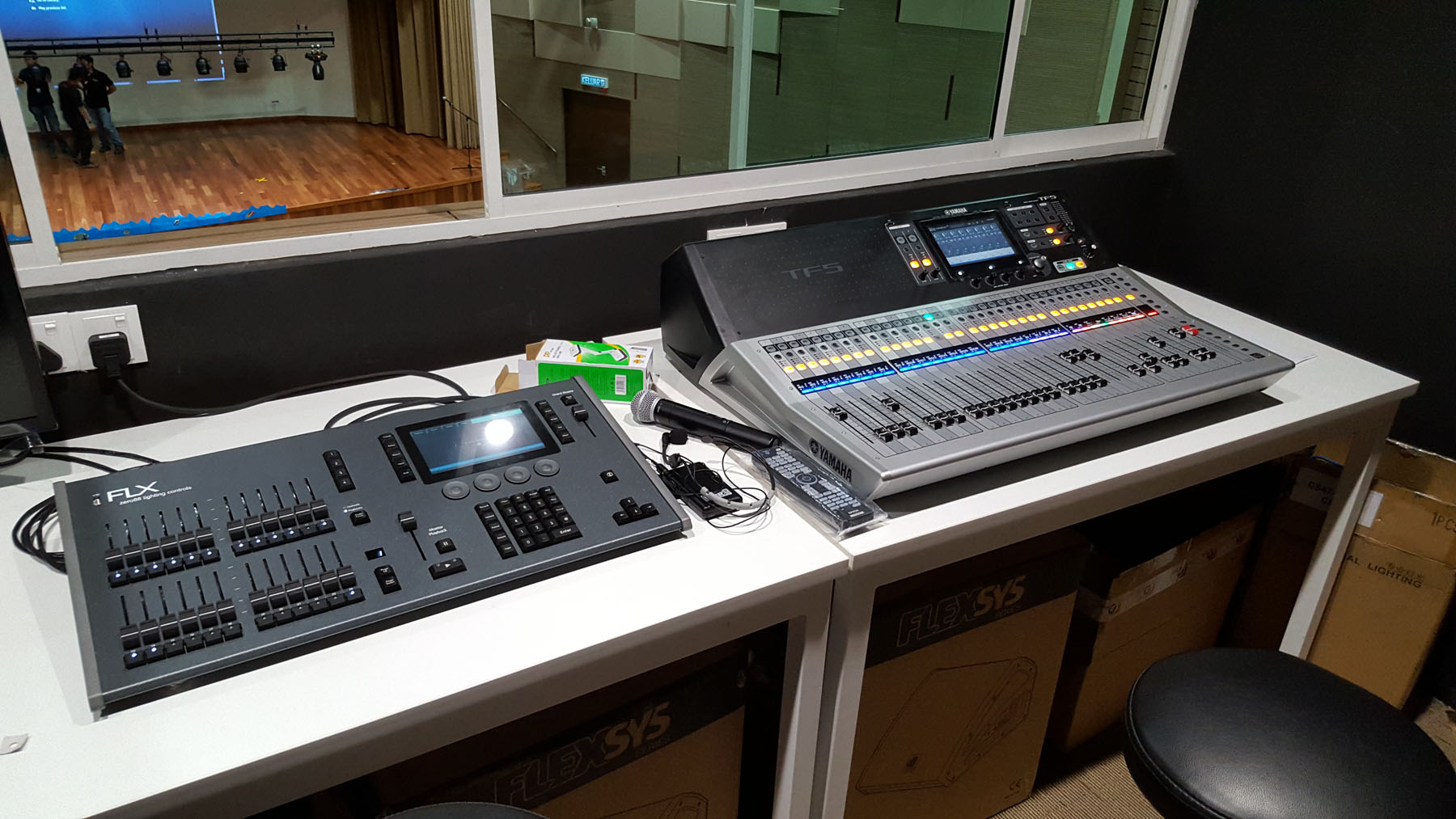

Programmable Lighting Control Desk is by Zero 88 FLX Lighting Console a 2048 channel lighting channel console.

Stage Curtain

We supply and installed JC Joel Stage Curtain Velvet Velour. For The FOH Main curtain is 17m wide by 6m high using 50% Fullness. Four nos of top masking and a curved Front of House Top masking curtain was installed.

Projection System

The video projection screen is a large size 16’x 16′ Rolleramic. Epson WXGA Projector on motorised lift to store when not in used. was installed on a motorised lift. All the Matrix switching is by Extron DXP 84 HDMI.

Integrated AV Remote control system is Crestron CP3 an IP based Controller was installed with ipad device being progrm to remote select the HMDI, Open/Close the Curtain, adjust the sound volume level.

The whole Auditorium Lighting and Sound project was completed on March 2016 ready for the school to use.
