Menara Unity UCI Petaling Jaya

Menara Unity Petaling Jaya
Menara Unity Petaling Jaya

Unity College International (U.C.I) Petaling Jaya has moved to their new building Menara Unity in Jalan 51A/223, near to Crystal Plaza PJ. The new building which houses an Auditorium and a Multipurpose Hall and administration floor and tutorial classes is a 5 storey building.

Artistic Controls together AV Designs was asked to come out with sound system design and to provide audio visual system for the multipurpose hall and the Auditorium. Sound clarity and simple to use was the main criteria. The sound system has to loaded with bass when needed according to UCI project team.

Menara Unity Multipurpose Hall
Menara Unity Multipurpose Hall

With this idea we have come out with the design that the sound system in Multipurpose Hall will consist of high quality ceiling speakers for source playback and speeches for event like exhibition, student registration and exam hall.

But should they would like to use the hall for prom night or dinner with dance nite then they will bring out the mobile sets which is powered Dynacord D-Lite 15” Subwoofer and the Audience Dellight Spark-12 12” Loudspeaker sets.

The total output power is 2000W enough to rock the hall.

Stage Lighting installed in Multipurpose Hall is using plenty of parcan with colour filter and control by the programmable lighting control desk that able to create effect and chase.

Auditorium Level 5

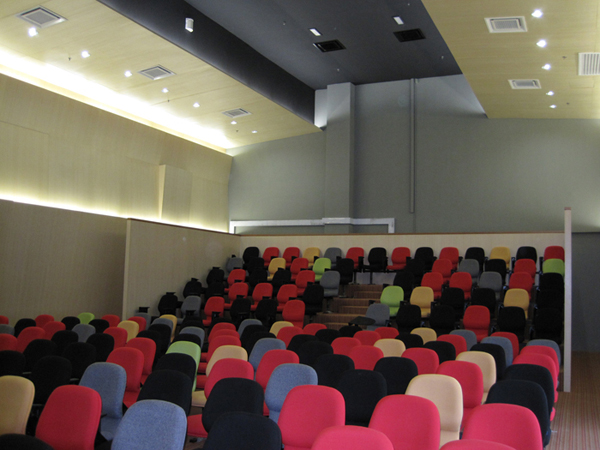

Menara Unity Auditorium
Menara Unity Auditorium

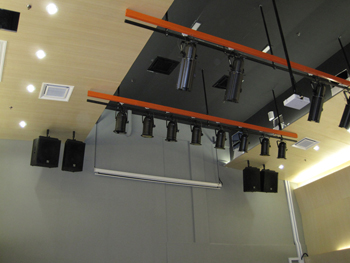

Menara Unity Auditorium Stage Lighting
Menara Unity Auditorium Stage Lighting

At the 5th Floor Auditorium which have a much higher room space then a permanent mounted EV Klub 15” Loudspeaker and EV Klub 18” subwoofer was put there. The sound has to be able to use for multimedia presentation and speeches. A Sanyo LCD projector and motorized screen is mounted here.

The auditorium stage lighting consist of a number of profiles spotlight and and general parcan mounted on the fixed rigging. This is simple stage lighting but functional for their use.

The lighting is enough to spot on the stage and they does not want any fancy lighting as the stage will mainly use for seminar and presentation.

The controller is by Zero 88 Jester control desk and Zero 88 Betapack 3 dimmer pack.

Since having the light and sound installed in both the auditorium and multipurpose hall the functions and events has been busy ever since.

Main Equipment System:
1 x Zero 88 Jester 24/48
4 x Zero 88 Betapack 3
12 x aLDR Profile
12 x aLDR Fresnel
30 x aLDR Parcan
2 x EV Klub KS115
2 x EV Klub KS118
2 x AD Spark SP-12
1 x Dynacord Active Loudspeaker
2 x Sanyo PLC-XU105
