Stride Kajang With Matrix PA System Installed

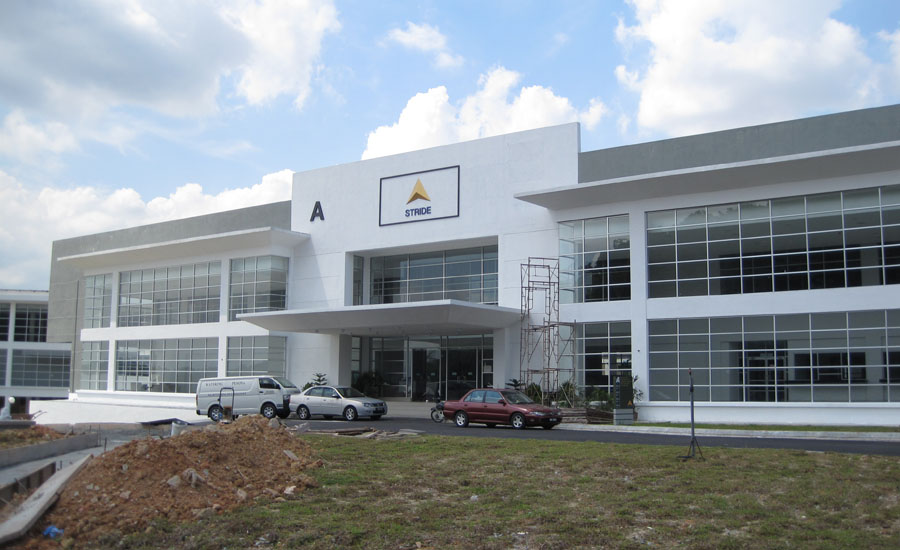

Stride Kajang

Stride Kajang

Institut Penyelidikan Sains & Teknologi Pertahanan (STRIDE) has moved part of the operation to their new complex building in Kajang recently. STRIDE is a department under the Ministry of Defence is working to provide technical support and scientific expertise to the Ministry of Defence. This new facility will help in the Research and Development.

In this project we work with the main contractor SN Akmida in providing the ELV system for the whole building and Audio Visual System for the meeting rooms and Auditorium. As the project is part of JKR jurisdiction and each of the subcontractors is subject to many project documentation and procedure like method of statement, equipment approval list, request for inspection and this is to basically ensure the installation is on par and comply to the specification.

The whole complex consists of 4 mains area like the admin block which contains mostly the admin operation, surau and the auditorium. The other 3 main areas are the Defence Technology Laboratory (Makmal Teknologi Pertahanan) block, Makmal Teknologi Jentera block and Makmal Pertahanan Kimia Block.

Amperes Matrix Paging

Amperes Matrix Paging

Public Address System

In the ELV System we provide Matrix based Public Address System which allows them to have different sources input to difference output zone. For that to function properly we install a fully Amperes PA System in all whole complex.

The proposed matrix system is Amperes MxP2188 a 8 x 8 Matrix paging controller unit. This unit allow flexibility of different input sources to different zone output. It enables the operator to play a different music source to a different zone and at the same time paging to different block of the areas.

The total numbers of speakers installed here is about 400 nos comprise of ceiling speaker, box speaker and horn speakers combine. In order to provide enough amplification we supply mixture of 240W and 360W power supply to different buildings block.

Auditorium and Meeting Room

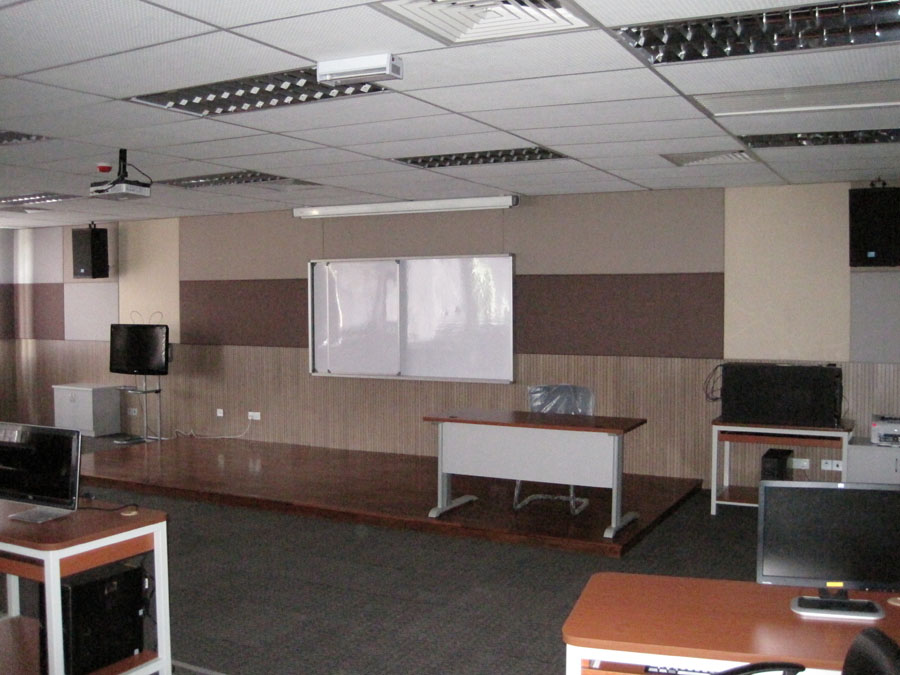

Stride Meeting Room

Stride Meeting Room

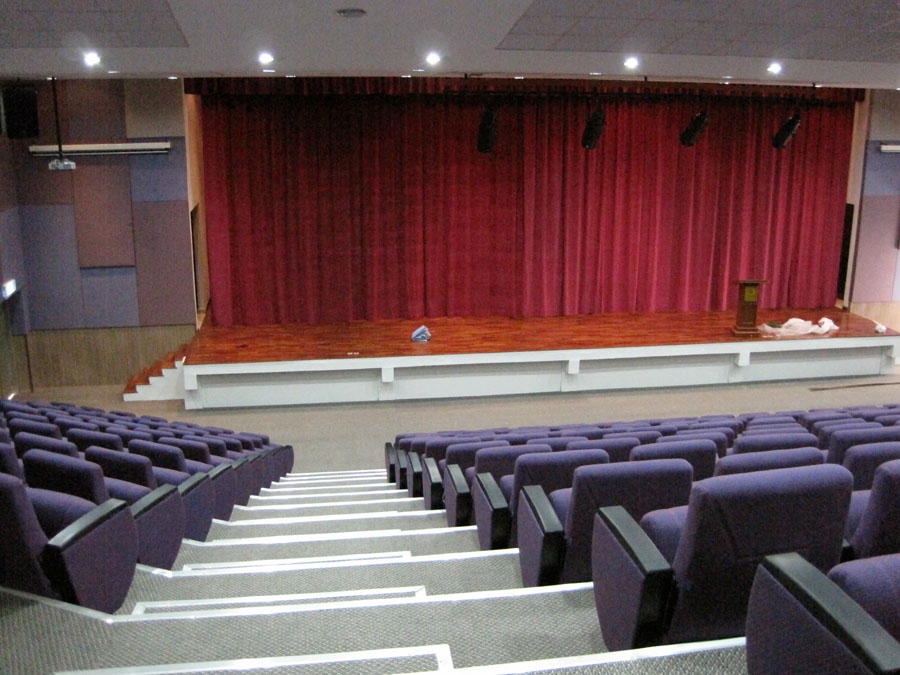

Stride Kajang Auditorium Stage Curtain

Stride Kajang Auditorium Stage Curtain

Each of the meeting rooms consist of AD Spark-8 which is 8” fullrange speakers powered by Yamaha powered mixer. Motorised screen and projector is a must for the meeting room to allow multimedia presentation.

Bosch Audio Conference system was selected to be used here for certain large meeting room and conference room. There are a total of 120 units of Bosch delegates units supply here in Stride Kajang.

Stride Kajang Auditorium

Stride Kajang Auditorium

The auditorium which is a 312 seating capacity has a large stage curtain which is 14m x 6.8m we have to use at least 3 rolls of velvet fabric from JC Joel. The speakers is from Electro Voice consist of 15” fullrange and 18” subwoofer.

Stage Lighting is from Zero 88 24 channel control desk and dimmer racks. Luminaries install here consist of 750W cool light, cyclorama lights and mostly parcan with rosco color gel.

We are proud to be associated with SK Akmida in providing top class AV services and installation in Stride Kajang. Full training was provided to different operators to ensure full operation can be handling without much problem.
